Click button to view Solid Model Drawings
| Type | Thread | Work
surface | Drive | Travel | Actuator | Posi-Lock |

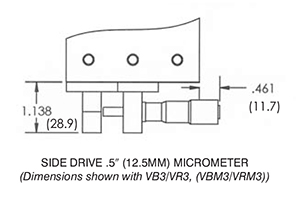

| CROSSED ROLLER | INCH | 3 X 3 | SIDE | .5 | MICROMETER | YES |
|
| All dimensions in inches unless otherwise specified |
| | (lbs) | ----- lb-in ----- | (in/in of travel) | " | |
| Series | Load Capacity | M1 | M2 | M3 | Accuracy | Repeatability | Coefficent of Friction |
| VR3SD-.5-PL | 176 | 126.610 | 105.180 | 110.440 | 0.00004 | 0.00002 | 0.002 |
|
|
|
|
|
